IVS Imaging iBLOCK Interface IV-NTx-U3

iBLOCK Interface IV-NTx-U3

IVS Imaging iBLOCK Interface IV-NTx-U3
Code
IV-NTx-U3

iBLOCK Interface IV-NTx-U3

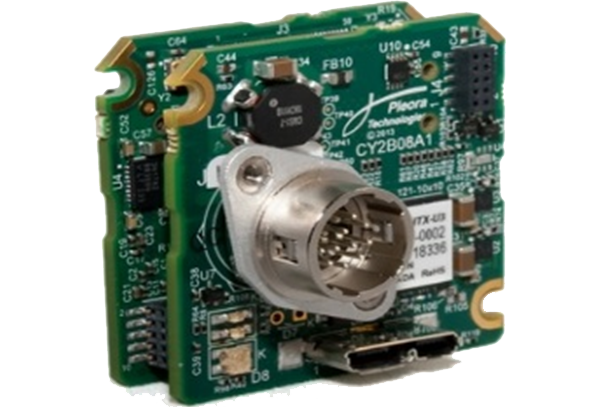

Compact and low power USB3 Vision and GenICam compatible interface board for Sony HD block modules. Throughput of up to 3 Gb/s. Up to 32-bit Line scan and area scan modes. Can support either USB-powered or external powered options.

Highlights:

  • 100pin Samtec Connector
  • (LSHM-150-04.0-L-DV-A-N-TR)
  • 12-pin Hirose Connector
  • 10-pin USB3.0 Micro-B Receptacle
  • Cypress FX3 Controller (USB3.0)
  • 32-Bit 120MHz LVTTL/LVCMOS Video
  • Varying Line Scan & Area modes
  • IV-NTx3-U3 kits: (#0002) USB3.0 Powered Interface Board; (#0005) USB3.0 Externally Powered Interface Board; (#0003) USB3.0 Powered Interface Board Eval Kit; (#0002) USB3.0 Externally Powered Interface Board Eval Kit

*Evaluation Kit includes board mounted w/ 12-pin GPIO connector & flange, Mini Adapter, Prober Board, USB3 cable, eBUS SDK CD & User Guide
