Navitar Resolv4K Lens Series Resolv4K-1S-C Kit

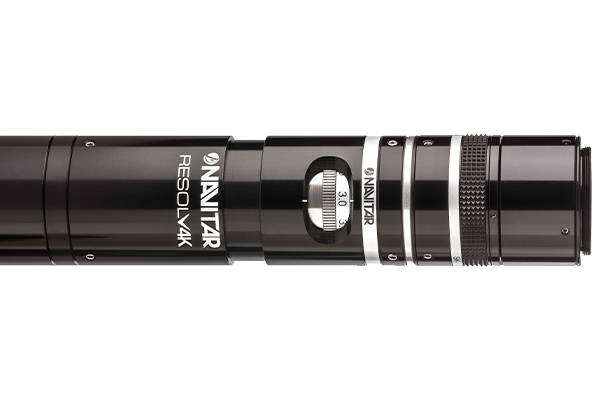

Navitar Resolv4K-1S-C Kit

The Navitar Resolv4K 1.0", C-Mount Resolv4K System.
Code
Resolv4K-1S-C Kit

Navitar Resolv4K-1S-C Kit

The Navitar Resolv4K 1.0", C-Mount Resolv4K System.

The Resolv4K Lens Series was designed from first order principles to maximize the usage of modern sensors with higher pixel densities. Numerous adapter options allow users to employ a range of sensors from 1/2” through APS formats and beyond. On the front end of the zoom, intricately designed lens attachments give users the best of both worlds; the low mag end of zoom gives wide fields of view with no sacrifice in MTF or loss of illumination, while the high mag end delivers microscope objective like resolution at extremely long working distances.

The Resolv4K lens has been designed not only for superior visible wavelength axial color correction, but dramatically increased wavelength focusing ability with Visible through Near Infrared (Vis-NIR) and SWIR options. Larger aperture lens attachments significantly increase the usable FOV for coaxial lighting options.

Highlights:

  • Camera Mount: 3-63266
  • Adapters: 1-81102
  • Core Zoom: 1-80100
  • Lower Interface: 1-81201
  • Lens Attachment: 1-81314
  • Recommended Cameras:
    • 1" Sony Pregius
    • acA4096-11gc/m
    • acA4096-30uc/m

Product Documentation

Spec Sheet
Download
Brochure
Download
